Structural Bioinformatics Visualization Techniques for Drug Discovery

The highest-impact structural bioinformatics visualization techniques for drug discovery and protein engineering are cartoon/ribbon with annotated residues, solvent excluded surface (SES) for pocket geometry, electrostatic and hydrophobicity color mapping, contact maps linked to 3D scenes, and MD trajectory overlays with uncertainty-aware displays for Cryo-EM and low-resolution models.

Task-to-technique quick map:

• Hit triage: Cartoon + SES surface with docking pose overlaid; use Mol* or iCn3D for rapid browser-based inspection
• Binding-site analysis: SES + electrostatic coloring; PyMOL or ChimeraX for production figures
• Pose inspection: Ball-and-stick ligand + stick protein residues + H-bond/π-stacking annotations; PyMOL scripted scenes
• Protein-engineering decisions: Per-residue mutational impact heatmaps + backbone trace; ChimeraX or VMD
• Presentation figures: Cartoon + ribbon with scale bars, labeled key residues, consistent color scales; PyMOL or ChimeraX
• AlphaFold integration: Overlay predicted models from the AlphaFold Protein Structure Database (over 200 million structures) with experimental PDB/mmCIF coordinates, coloring by pLDDT confidence score

Web for inspection, desktop for production: Mol* and iCn3D require no installation and share interactive scenes instantly. PyMOL and ChimeraX handle scripted batch figure generation, HPC integration, and secure local workflows.

Table of Contents

• Why visualization drives decisions in structural bioinformatics
• Core representation types and how to match them to discovery tasks
• Which molecular surface type should you use?
• How to visualize MD trajectories and conformational ensembles
• Choosing between web viewers and desktop tools
• Recommended workflows for hit triage and protein engineering
• Best practices and pitfalls to avoid in structural visualization
• Handling time-series data in production visualization pipelines
• Innovabiotech builds production-grade visualization pipelines for biopharma R&D
• Key Takeaways
• A practitioner's view on where visualization efforts break down
• Useful sources and tools to explore next
• FAQ

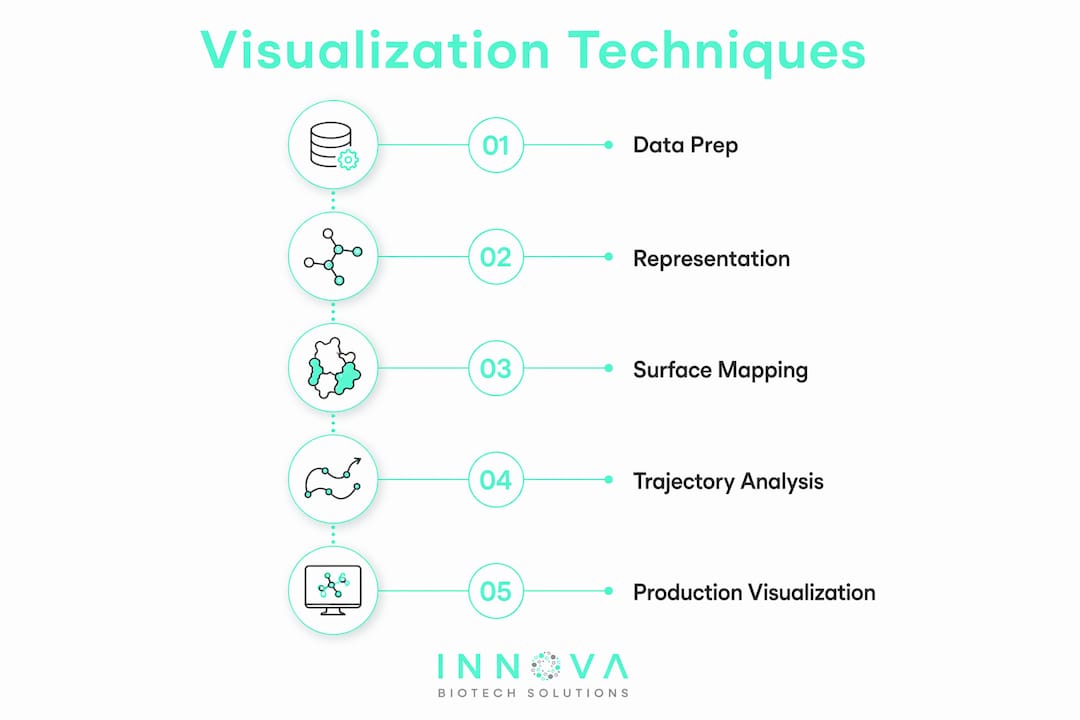

Why visualization drives decisions in structural bioinformatics

Visualization is not a presentation afterthought. It is the primary decision interface between computational outputs and the scientists who act on them. A well-constructed SES surface with electrostatic overlay can confirm or kill a virtual screening hit in minutes; the same data as a raw coordinate file tells you almost nothing at a glance.

Structural bioinformatics surveys consistently show that choosing the representation by the scientific question, not by default settings, is what separates interpretable figures from misleading ones. For hit-to-lead cycles, annotated interaction maps reduce the back-and-forth between computational and medicinal chemistry teams. For protein engineering, per-residue heatmaps make variant prioritization concrete rather than abstract.

High-value deliverables where visualization adds direct ROI include annotated binding-site figures for SAR discussions, per-residue B-factor or pLDDT overlays for stability assessment, and interactive HTML reports that non-computational stakeholders can explore without installing software.

Core representation types and how to match them to discovery tasks

Molecular visualization methods fall into a small set of representation families, each answering a different question. Picking the wrong one is not just an aesthetic problem — it can obscure the very feature you are trying to evaluate.

Representation families:

• Cartoon/ribbon: Shows secondary structure topology. Best for interface engineering and fold comparison; annotate key residues with stick side chains
• Backbone trace: Minimal Cα connectivity. Useful for large assemblies where full-atom rendering is too dense
• Stick and ball-and-stick: Atomic detail for active-site residues and ligand poses. Required for H-bond, salt bridge, and π-stacking analysis
• Spacefill/VDW: Full atomic radii. Clearest for presentations showing overall shape and packing; poor for interaction detail
• Contact maps (2D linked to 3D): Residue-residue contact matrices linked to the 3D scene. Powerful for validating fold quality and comparing alternative conformations

Task → technique mapping:

Quantitative overlays add a layer of interpretability that static color alone cannot. Electrostatic potential mapped onto SES surfaces immediately flags charged binding-site features relevant to selectivity. Hydrophobicity scales (Kyte-Doolittle or similar) on surface representations guide lipophilicity optimization. B-factor tubes on backbone traces reveal flexible regions worth engineering.

Which molecular surface type should you use?

The three standard surface types answer different questions, and conflating them is one of the most common sources of misleading pocket analysis.

Van der Waals (vdW) surface uses the hard atomic radii directly. It is the densest, most atom-faithful surface, and it is most useful for presentations showing overall molecular shape or for checking steric clashes in a binding site.

Solvent Accessible Surface (SAS) is computed by rolling a probe sphere (typically 1.4 Å, representing water) over the vdW surface. The center of the probe traces the SAS. It is the right choice for quick accessibility heuristics, solvent exposure comparisons across mutations, and calculating buried surface area at protein-protein interfaces.

Solvent Excluded Surface (SES), also called the Connolly surface, traces the inward-facing surface of the rolling probe. It defines the actual cavity geometry a ligand can occupy. For virtual screening pocket filters and precise interaction footprint calculations, SES is the standard. GPU-accelerated ray casting now makes interactive SES rendering practical for moderately sized proteins.

Pro Tip: When mapping electrostatics onto a surface for a medicinal chemistry audience, always use SES rather than SAS. SES reflects the space a ligand actually occupies, so the electrostatic features it reveals are directly actionable for lead optimization.

How to visualize MD trajectories and conformational ensembles

Single static snapshots mislead. When binding or function is time-dependent — allosteric pockets that open transiently, flexible loops that gate active sites — trajectory visualization is not optional.

Core strategies for dynamic data:

1. Trajectory playback with per-frame property mapping: Load the full trajectory in VMD or ChimeraX; map RMSD, RMSF, or contact frequency onto each frame to track conformational drift
2. Ensemble clustering: Reduce hundreds of frames to 3–5 representative conformers using RMSD-based clustering; visualize the cluster centroids as a ribbon ensemble to show the conformational envelope
3. Morphs between conformers: Generate interpolated morph animations between open and closed states for presentations and publications
4. Uncertainty-aware displays for Cryo-EM: Propagate anisotropic positional uncertainty into visual encodings — ellipsoid glyphs or opacity gradients — rather than treating every coordinate as absolute

Workflow for a publishable MD visualization deliverable:

1. Preprocess trajectory (strip solvent, align to reference frame, check for artifacts)
2. Select representative frames via clustering or time-point sampling
3. Map per-residue properties (RMSF, contact frequency, electrostatics) onto the representative structure
4. Export an interactive scene (e.g., NGL or Mol* HTML) for team review and a static high-resolution figure for publication
5. Archive the scripted scene-generation commands alongside the versioned trajectory file

Pro Tip: Do not sample frames at uniform time intervals for ensemble visualization. Cluster by RMSD first, then pick the medoid of each cluster. Uniform sampling over-represents the dominant conformation and under-represents rare but functionally important states.

Choosing between web viewers and desktop tools

Web viewers and desktop tools are not interchangeable. The choice depends on the stage of the project, the audience, and the security requirements.

Web-based viewers like Mol* and iCn3D use WebGL for GPU-accelerated rendering directly in the browser. No installation, instant sharing via URL, and integrated sequence panels make them ideal for rapid inspection and cross-team communication. The tradeoff is limited scripting, no batch processing, and no path to secure HPC integration.

Desktop and scripted tools — PyMOL, ChimeraX, and VMD — are the production standard. PyMOL's Python API and ChimeraX's command-line scripting support reproducible, automated figure generation. VMD handles large MD trajectories and HPC-integrated workflows. For projects with confidentiality requirements, local workflows are the only defensible option.

AlphaFold integration works across both classes. Load predicted mmCIF files from the AlphaFold Protein Structure Database into any viewer; color by pLDDT score (blue = high confidence, orange/red = low) before overlaying onto experimental density or PDB coordinates. Regions with pLDDT below 70 should be treated as disordered and excluded from pocket analysis.

Recommended workflows for hit triage and protein engineering

Workflow A: Virtual screening hit triage

1. Load docked poses (SDF or mol2) and receptor (PDB/mmCIF) into PyMOL or ChimeraX
2. Render receptor as cartoon + SES surface colored by electrostatics
3. Display top-ranked ligands as ball-and-stick; annotate H-bonds, salt bridges, and hydrophobic contacts
4. Generate a contact map to cross-validate pose geometry against docking scores
5. Export annotated static figures (PNG, 300 dpi) and an interactive HTML report for the medicinal chemistry team

Deliverables: Annotated pose gallery, interaction frequency table, prioritized hit list with visual rationale

Workflow B: Protein engineering iteration cycle

1. Model variants using homology or AlphaFold-based prediction; align to wild-type structure
2. Render backbone trace with per-residue ΔΔG or pLDDT heatmap
3. Inspect side-chain packing at the mutation site with ball-and-stick + VDW surface
4. Cross-validate with ML-driven hit prioritization scores and stability predictions
5. Archive scripted PyMOL or ChimeraX session files with versioned model metadata

Deliverables: Per-variant heatmap figure set, annotated PDB/mmCIF files, reproducibility log

Reproducibility checklist:

• Script every scene (no manual click-through sessions)
• Version-control model files alongside figure scripts
• Record software version, color scale parameters, and surface probe radius in figure metadata

Best practices and pitfalls to avoid in structural visualization

EMBL-EBI structural bioinformatics training is explicit: choose the representation by the question, not by what looks impressive. Violating that principle produces figures that mislead rather than inform.

Do's and don'ts:

Avoiding deceptive level-of-detail choices is particularly important for large assemblies. Rendering a full ribosome at atomic detail obscures the very features you want to highlight. Use level-of-detail strategies: cartoon for the full complex, ball-and-stick only at the site of interest.

Handling time-series data in production visualization pipelines

Time-series visualization in structural biology goes beyond playing back a trajectory. The goal is to extract and communicate the biologically relevant signal from thousands of frames.

Per-residue RMSF plots, mapped back onto the structure as B-factor tubes, immediately show which regions are rigid anchors and which are flexible linkers. Contact frequency matrices computed across the full trajectory reveal transient interactions that never appear in a single snapshot. For allosteric drug targets, these transient contacts are often the most pharmacologically relevant features in the dataset.

Time-series data also demands careful frame selection for figures. A single frame pulled from the middle of a simulation may represent neither the dominant state nor the functionally relevant conformation. Always report which frame or cluster centroid a figure represents, and include the RMSD distribution as a supplementary panel so reviewers can assess sampling quality.

Innovabiotech builds production-grade visualization pipelines for biopharma R&D

Most biopharma teams have the viewers. What they lack is the scripted, reproducible pipeline that turns raw structural data into decision-ready deliverables at project speed.

Innovabiotech delivers custom visualization modules built directly into your drug-discovery or protein-engineering workflow: scripted PyMOL and ChimeraX figure pipelines, MD trajectory analysis with per-residue property mapping, AlphaFold confidence overlays aligned to experimental coordinates, and secure HPC-integrated workflows for confidential programs. Every deliverable is reproducible, versioned, and documented for regulatory or client review.

The best fit for a contracted engagement is a team that has structural data but needs production-quality figures, automated reporting, or a visualization layer integrated with docking or mutational scan outputs. To scope a project, prepare your target PDB/mmCIF files, a summary of the discovery stage (hit triage, lead optimization, or engineering cycle), and any existing scoring or experimental data. Reach out to Innovabiotech's protein design and computational modeling team to start the conversation.

Key Takeaways

The most defensible structural visualizations are question-driven, uncertainty-aware, and cross-validated against quantitative outputs such as docking scores or mutational scan data.

A practitioner's view on where visualization efforts break down

The failure mode in enterprise visualization is almost never the choice of viewer. It is the absence of automation and the absence of uncertainty handling. Teams produce beautiful one-off figures for a single meeting, then reproduce them manually for the next milestone with slightly different settings, different color scales, and no record of which model version was used. The figures are not wrong, exactly, but they are not comparable, and they cannot be audited.

The second failure is treating predicted structures as equivalent to experimental ones without flagging the difference visually. An AlphaFold model with a pLDDT of 55 in the loop region and a crystal structure at 1.8 Å resolution are not the same kind of data. Displaying them identically in a figure misleads every downstream decision-maker who did not read the methods section.

The fix for both problems is the same: script the scene, version the model, and encode uncertainty in the visual output itself. That is not a visualization problem. It is a workflow discipline problem, and it is exactly where a specialist services partner adds the most leverage.

Useful sources and tools to explore next

The sources below are the primary references for follow-up reading and for documenting visualization-driven decisions internally.

• AlphaFold Protein Structure Database: The primary source for predicted structures. Cite pLDDT scores and model version when documenting confidence-based filtering decisions.
• EMBL-EBI Molecular Visualization Training: The authoritative do's and don'ts reference for structural visualization in a biopharma context. Use it as the basis for internal SOPs.
• RCSB PDB / Mol Documentation:* Practical guide to Mol*'s sequence panel, interaction display, and sharing features. Start here for web-based inspection workflows.
• Visualization of Biomolecular Structures: State of the Art Revisited: The most comprehensive survey of representation types, surface methods, and dynamic data strategies. Cite this when documenting representation choices in project reports.
• Uncertainty-Aware Visual Analytics of Proteins: The technical reference for propagating positional uncertainty into visual encodings. Required reading before producing Cryo-EM or ensemble figures for regulatory submissions.
• Frontiers in Biomolecular Mesh Generation: Covers specialized mesh tools (TMSmesh, VCMM) needed when BEM/FEM simulation outputs are part of the visualization workflow.

FAQ

What is the difference between SAS and SES in molecular visualization?

SAS (Solvent Accessible Surface) traces the center of a rolling probe sphere over the vdW surface and is used for accessibility and buried-area calculations. SES (Solvent Excluded Surface) traces the probe's inward-facing contact surface and defines the actual cavity geometry a ligand can occupy, making it the standard for virtual screening pocket analysis.

Which visualization tool is best for drug discovery workflows?

PyMOL and ChimeraX are the production standards for scripted, reproducible figures in drug discovery. Mol* and iCn3D are the right choice for rapid browser-based inspection and sharing with non-computational team members.

How should AlphaFold models be displayed alongside experimental structures?

Overlay the AlphaFold mmCIF file onto the experimental PDB coordinates and color the predicted model by pLDDT score. Regions with pLDDT below 70 are likely disordered and should be excluded from binding-site or interaction analysis.

What does uncertainty-aware visualization mean in practice?

It means encoding positional uncertainty directly in the visual output — B-factor tubes, pLDDT color gradients, or ellipsoid glyphs for Cryo-EM models — rather than displaying all coordinates with equal visual weight. This prevents overconfident interpretation of low-resolution or predicted regions.

Can Innovabiotech build a custom visualization pipeline for our project?

Yes. Innovabiotech delivers scripted, HPC-integrated visualization workflows for hit triage, lead optimization, and protein engineering cycles, including AlphaFold integration and secure handling of confidential structural data.
